ECU Diagnostic & Remapping Tool for Honda Motorcycles

Indonesia

Aplikasi desktop Windows untuk mendukung workflow diagnostic dan remapping ECU sepeda motor Honda. Project ini menampilkan integrasi aplikasi desktop, dependency FTDI, USB-to-K-Line module, screenshot, video walkthrough, dokumentasi, dan paket aplikasi yang dapat diunduh.

English

A Windows desktop engineering application for Honda motorcycle ECU diagnostic and remapping workflow. This presents desktop software integration, FTDI dependency, USB-to-K-Line hardware connection, screenshots, walkthrough video, documentation, and a downloadable application package.

Download Application Package Watch Walkthrough View Screenshots Read Disclaimer Read License

Project Overview / Ringkasan Project

Indonesia

Project ini terdiri dari dua aplikasi desktop utama: Diagnostic Scanner dan Remapping Flasher. Aplikasi berkomunikasi dengan hardware ECU melalui FTDI dan USB-to-K-Line module.

Fokus project adalah desktop engineering, hardware-software integration, driver/DLL dependency, serta workflow diagnostic/remapping yang terdokumentasi dengan jelas.

English

This project consists of two main desktop applications: a Diagnostic Scanner and a Remapping Flasher. The applications communicate with ECU-related hardware through FTDI and a USB-to-K-Line module.

The project focuses on desktop engineering, hardware-software integration, driver/DLL dependency, and a documented diagnostic/remapping workflow.

Diagnostic Scanner

Supports ECU diagnostic workflow, communication status, and diagnostic data reading.

Remapping Flasher

Supports BIN file selection, validation workflow, and controlled ECU remapping/flashing process.

Hardware Integration

Uses FTDI dependency and USB-to-K-Line interface to connect desktop software with ECU hardware.

Technology Stack / Teknologi

Language

C#

Desktop UI

Windows Forms / WinForms-style application

Runtime

.NET Framework based Windows executable

Communication

FTDI / FTD2XX_NET.dll dependency

Hardware

FTDI USB interface and USB-to-K-Line module

Target

Honda motorcycle ECU workflow

Package

Downloadable EXE/DLL package

Documentation

User guide, disclaimer, setup notes, screenshots, video

Walkthrough Video / Video Project

Video berikut menunjukkan tampilan project dan alur penggunaan secara visual. File video disimpan di video/ecu-diagnostic-remapping-walkthrough.mp4.

Screenshots / Tampilan Project

Screenshot berikut diambil dari folder screenshots/ dan digunakan untuk membantu memahami UI, arsitektur, dan integrasi hardware.

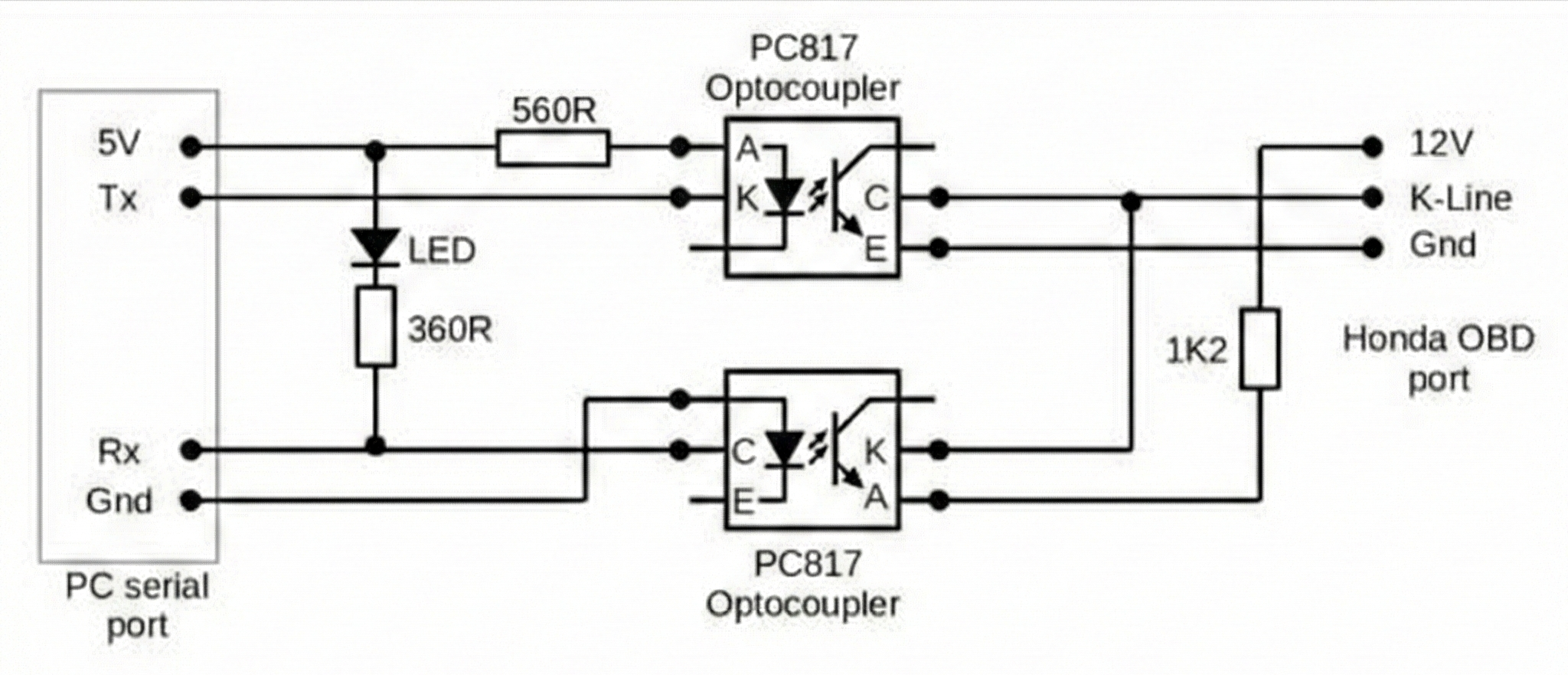

Module framework and hardware architecture reference
Module framework showing desktop application and hardware communication concept.

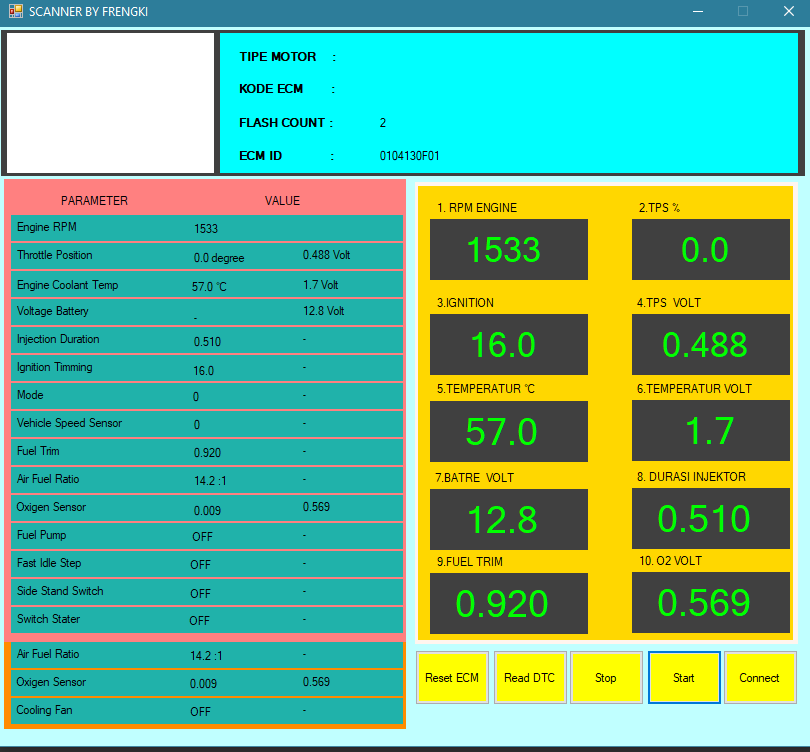

Scanner user interface
Scanner UI for ECU diagnostic workflow and communication checking.

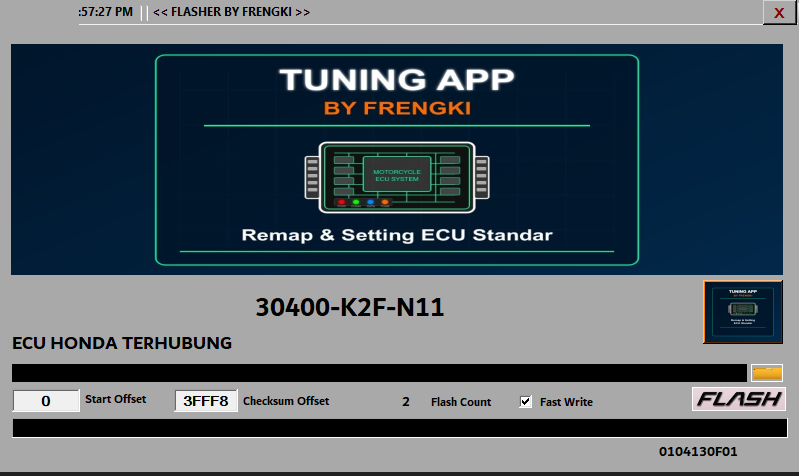

Flasher user interface
Flasher UI for BIN selection, file validation workflow, and remapping process monitoring.

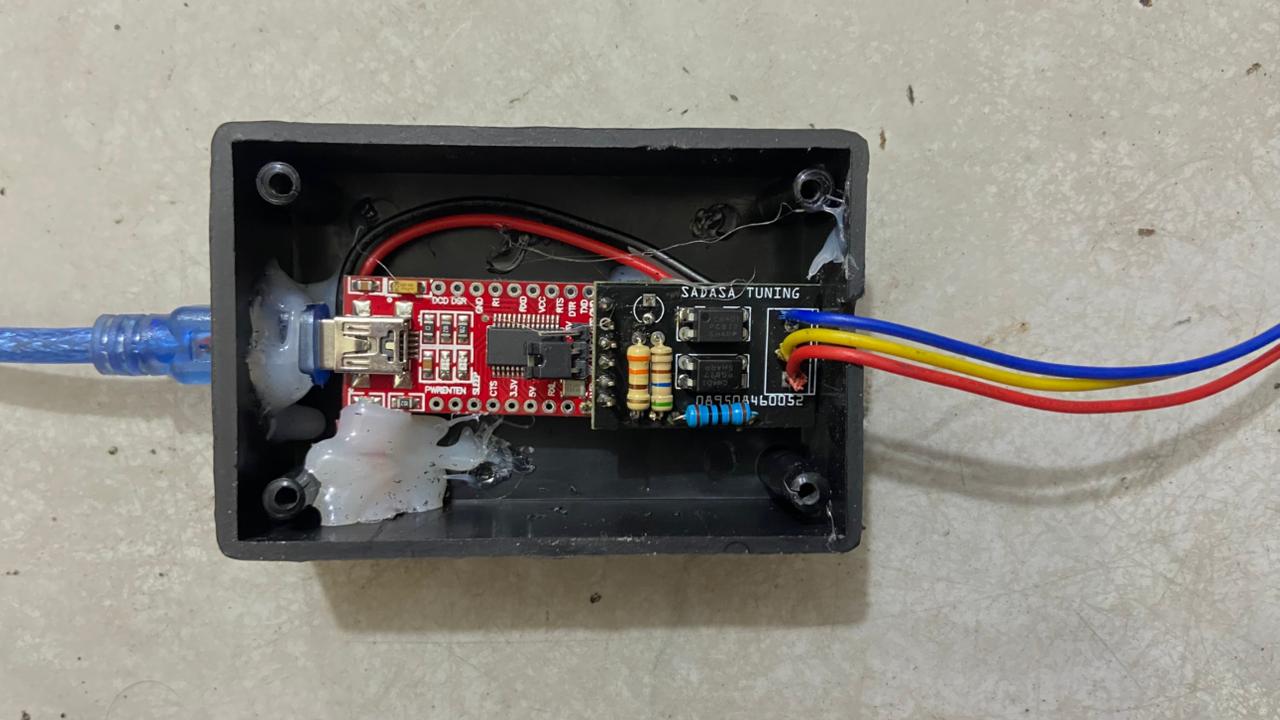

USB-to-K-Line hardware module
Hardware module used to bridge the desktop application with ECU communication.

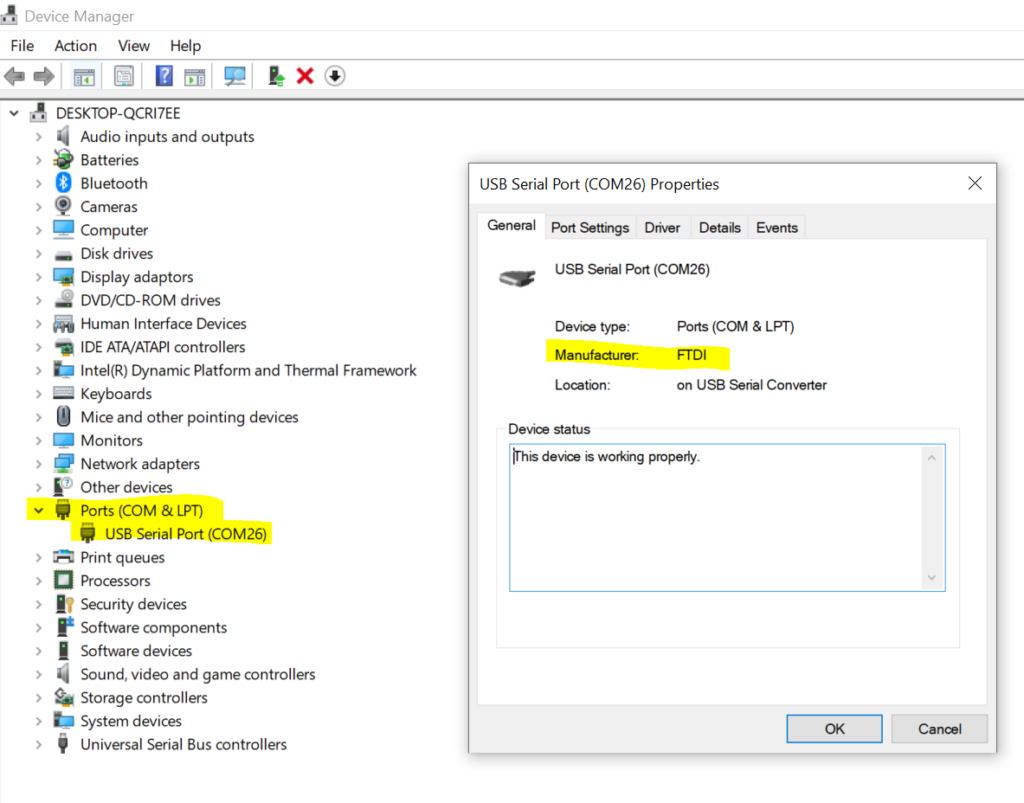

FTDI device detected in Windows Device Manager
Windows Device Manager screenshot showing FTDI/USB serial device detection.

Problem / Masalah

Indonesia

Proses diagnostic dan remapping ECU membutuhkan komunikasi yang stabil antara komputer, driver, hardware interface, dan ECU. Kesalahan pada wiring, power supply, file ECU, atau komunikasi FTDI dapat menyebabkan kegagalan proses.

English

ECU diagnostic and remapping require stable communication between the computer, driver, hardware interface, and ECU. Wiring issues, unstable power, incompatible ECU files, or FTDI communication problems may cause process failure.

Objective / Tujuan

Indonesia
  • Menyediakan aplikasi desktop Windows untuk workflow diagnostic ECU.
  • Mendukung workflow remapping/flashing melalui aplikasi desktop terpisah.
  • Mengintegrasikan aplikasi dengan dependency FTDI dan USB-to-K-Line module.
  • Menyediakan dokumentasi, screenshot, video, dan paket aplikasi.
English
  • Provide a Windows desktop application for ECU diagnostic workflow.
  • Support remapping/flashing workflow through a separate desktop application.
  • Integrate the application with FTDI dependency and USB-to-K-Line module.
  • Provide documentation, screenshots, video, and application package for review.

System Architecture / Arsitektur Sistem

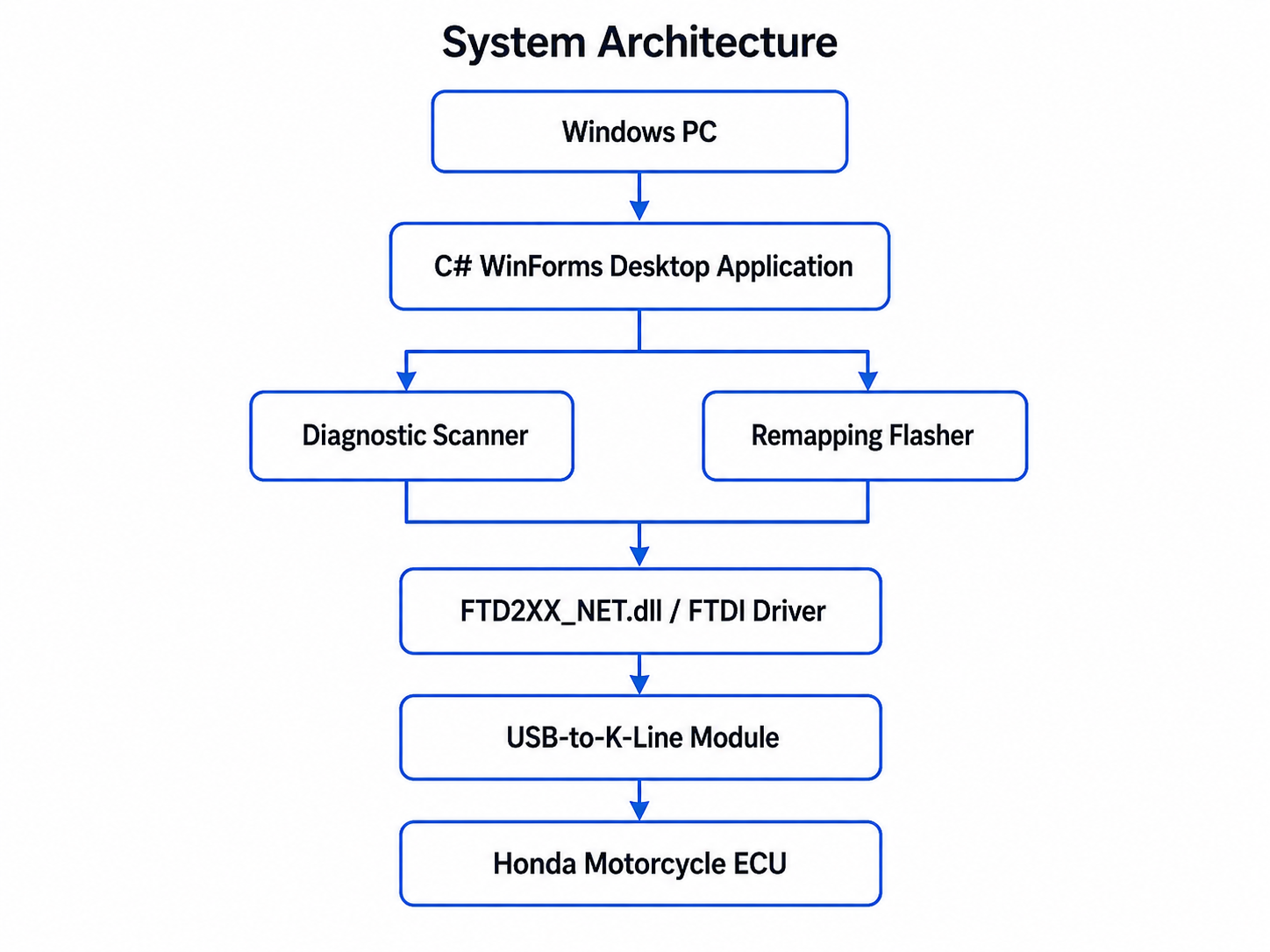

System Architecture / Arsitektur Sistem

Workflow / Alur Aplikasi

Diagnostic Scanner Flow

  1. Open Scanner application.
  2. Check FTDI device and driver readiness.
  3. Connect to ECU through USB-to-K-Line module.
  4. Read ECU diagnostic information.
  5. Review diagnostic status/result.

Remapping Flasher Flow

  1. Open Flasher application.
  2. Select compatible BIN file.
  3. Perform file validation workflow.
  4. Confirm hardware and power readiness.
  5. Run controlled remapping/flashing workflow.
  6. Verify result using Scanner.

Local Setup / Cara Menjalankan

Application Files

app/
├── SCANNER BY FRENGKI.exe
├── FLASHER BY FRENGKI.exe
└── FTD2XX_NET.dll

Requirements

  • Windows laptop/PC.
  • .NET Framework compatible runtime.
  • FTDI driver.
  • FTDI USB interface.
  • USB-to-K-Line module.
  • Compatible Honda ECU and stable 12V power for full functionality.

Download Package / Paket Aplikasi

Paket aplikasi dapat diunduh melalui tombol di bawah. Package ini berisi executable, DLL, screenshot, dokumentasi, dan data placeholder.

Download Application Package Download Scanner EXE Download Flasher EXE
ecu-diagnostic-remapping/
├── README.md
├── DISCLAIMER.md
├── index.html
├── app/
│   ├── SCANNER BY FRENGKI.exe
│   ├── FLASHER BY FRENGKI.exe
│   └── FTD2XX_NET.dll
├── screenshots/
├── video/
├── docs/
├── data/
└── download-package/

Documentation / Dokumen Pendukung

Dokumen berikut membantu reviewer memahami project dari sisi setup, batasan, panduan penggunaan, dan keamanan.

README.md

Project summary, setup notes, technology stack, and description.

 DISCLAIMER.md

Safety disclaimer and usage limitation for ECU-related application.

 LICENSE

Proprietary license for project review and usage limitation.

 User Guide PDF

Buku panduan penggunaan project dalam Bahasa Indonesia.

Safety Consideration / Keamanan

Important Safety Notice

This application interacts with ECU-related hardware. Incorrect wiring, unstable power supply, incompatible ECU files, or improper flashing procedures may cause ECU malfunction or hardware damage.

  • Use only with correct FTDI driver and compatible hardware.
  • Do not use real ECU files without proper validation.
  • Do not perform flashing without stable 12V power and correct wiring.
  • Source code, original BIN/XDF files, ECU backups, checksum logic, seed/key logic, and sensitive implementation details are not included.

Result & Limitation / Hasil dan Batasan

Result

  • Desktop application package prepared for review.
  • Scanner and Flasher applications organized in a clean structure.
  • FTDI/DLL dependency documented clearly.
  • Screenshot, video, user guide, and download package included.

Limitation

  • Windows-only desktop application.
  • Full functionality requires ECU/FTDI/USB-to-K-Line hardware.
  • No complete standalone simulation mode is provided.
  • Use of flasher requires proper technical understanding and safety control.
